PVC Creasing Matrix
PVC Creasing Matrix mangrupa alat bantu pikeun indentation kertas, éta utamana diwangun ku pelat logam strip sarta spésifikasi béda tina garis indentation. Garis ieu ngagaduhan rupa-rupa lebar sareng jero, cocog pikeun ketebalan kertas anu béda, pikeun nyumponan kabutuhan rupa-rupa desain tilepan. PVC Creasing Matrix dirancang pikeun kaperluan pamaké dina pikiran, sababaraha produk dilengkepan skala akurat, merenah pikeun pamaké pikeun nyieun ukuran akurat nalika nyieun tilepan kompléks.
model nu lumaku:
datar mesin mencét / otomatis paeh mesin motong
Aplikasi:

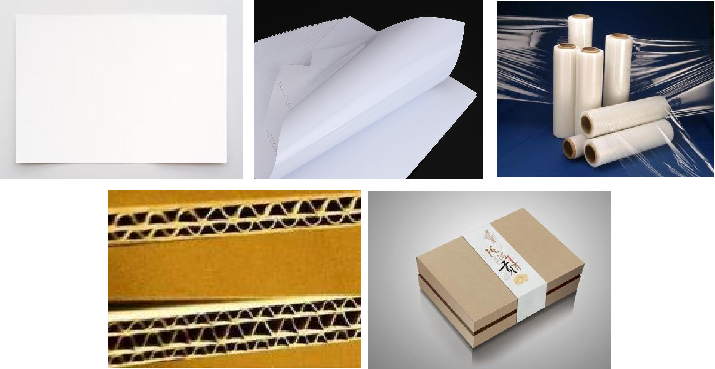

Karton bodas / kertas tambaga / karton abu rupa karton / PVC lambar / kertas corrugated / kotak warna / kotak kado rupa bungkusan, jsb
Kaunggulan:
- Tahan tegangan kali: Tahan tegangan ti sarupa 10%.
- Gampang dianggo: Simplify prosés tilepan, ningkatkeun efisiensi produksi.
- Pangaruh: Jelas indentation, pikeun mastikeun akurasi tilepan.
- Reusable: Éta gaduh daya tahan sareng stabilitas anu saé, tiasa dianggo sababaraha kali sareng ngajaga kinerja anu sami.
Parameter
| Pilihan kardus (nurutkeun jangkungna mesin motong paeh 23.77mm pikeun ngalakukeun standar) | ||||
| Kertas gsm (mm) | Ketebalan gsm (mm) | jangkungna aturan motong (mm) | jangkungna aturan motong (mm) | Tipe |
| 小于 100 克 | 0.1 | 23.5 | 1,5 pt / 0,53 mm | 2PT1.2-1.4(0.3×0.6) |
| 150-190 | 0.15-0.25 | 23.5 | 2 pt / 0,71 mm | 2PT1.2-1.4(0.3×0.6) |
| 200-220 | 0.26-0.34 | 23.5 | 2 pt / 0,71 mm | 2PT1.2-1.4(0.3×0.6) |
| 230-280 | 0.35-0.40 | 23.4 | 2 pt / 0,71 mm | 2PT1.2-1.4(0.3×0.6) |
| 290-330 | 0.42-0.47 | 23.4 | 2 pt / 0,71 mm | 2PT1.2-1.4(0.3×0.6) |
| 350-400 | 0.50-0.56 | 23.3 | 2 pt / 0,71 mm | 2PT1.2-1.4(0.3×0.6) |
| 410-450 | 0.57-0.63 | 23.2 | 2 pt / 0,71 mm | 2PT1.5-1.9(0.3×0.6) |
| 460-500 | 0.64-0.70 | 23.1 | 3 pt / 1,05 mm | 2PT1.9-2.3(0.3×0.6) |
| 520-600 | 0.72-0.84 | 22.9 | 4 pt / 1,42 mm | 3PT1.9-2.3(0.3×0.6) |
| 620-700 | 0.84-0.98 | 22.8 | 4 pt / 1,42 mm | 3PT2.3-2.7(0.3×0.8) |
| Pamilihan kertas bergelombang (nurutkeun jangkungna motong paéh 23.77mm) | ||||
| Kertas | Ketebalan gsm (mm) | jangkungna aturan motong (mm) | jangkungna aturan motong (mm) | Tipe |
| E pit | 0.46-0.50 | 23.2 | 2 pt / 0,71 mm | 3PT2.7-3.2(0.3×0.9) |
| E pit | 0.60-0.69 | 23 1 | 3 pt / 1,05 mm | 4PT2.7-3.2(0.3×0.9) |
| Epit | 0.70-0.80 | 23.0 | 4 pt / 1,42 mm | 4PT3.2-3.5(0.3×0.9) |
| Bpit | 0.81-0.89 | 22.9 | 4 pt / 1,42 mm | 4PT3.5-4.0(0.3×0.9) |
| Bpit | 0.90-0.96 | 22.8 | 4 pt / 1,42 mm | 4PT4.0-4.5(0.3×0.9) |
| Apit | 4.0-4.5 | 22.7 | 4 pt / 1,42 mm | 4PT2.7-3.2(1.0×7.0) |
| Bpit | 2.5-3.0 | 22.6 | 4 pt / 1,42 mm | 4PT3.5-4.0(1.0×7.0) |
| Cpit | 3.5-4.0 | 22.5 | 4 pt / 1,42 mm | 4PT3.5-4.0(1.0×5.0) |
| Epit | 1.5-2.0 | 22.4 | 4 pt / 1,42 mm | 3PT2.3-2.7(1.0×5.0) |
| Fpit | 0.8-1.0 | 22.3 | 3 pt / 1,05 mm | 2PT1.9-2.3(0.8×2.3) |
