LQ-UPG LY300L Digital UV Printing and Labeller

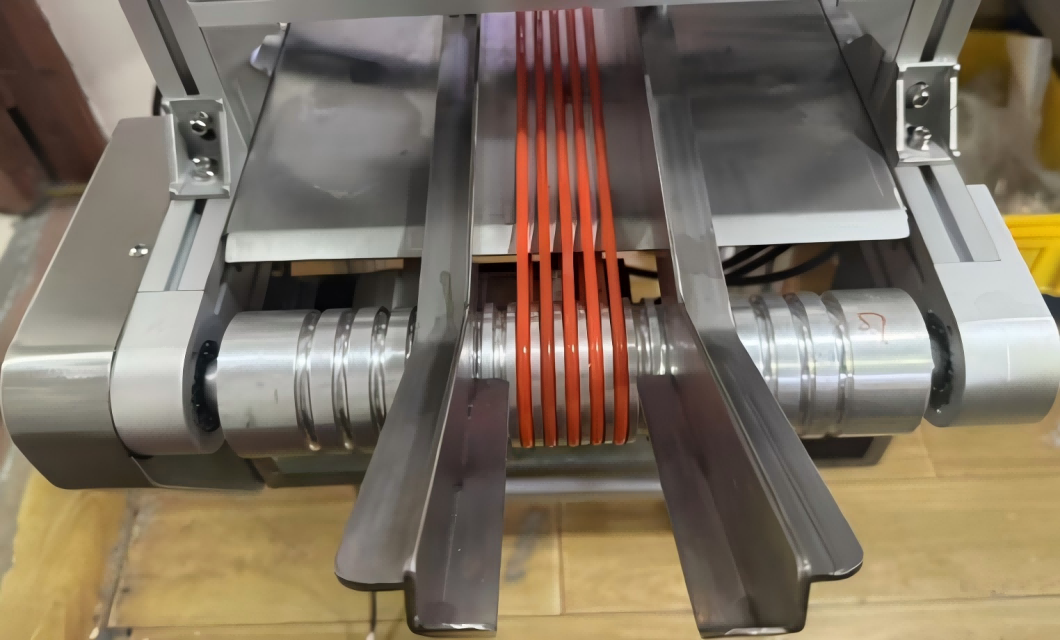

Automated Paging: It can automatically separate the stacked products or materials into individual pages without the need for manual paging, which significantly reduces labor costs and paging time, thus enhancing the overall production speed.

Precise  Positioning:  It  provides stable and accurate  product positioning for the inkjet printer, ensuring the consistency and accuracy of the printing position. This avoids quality problems such as blurred or misaligned printing caused by unstable or shaking product positions, thereby improving the clarity and legibility of the printing.

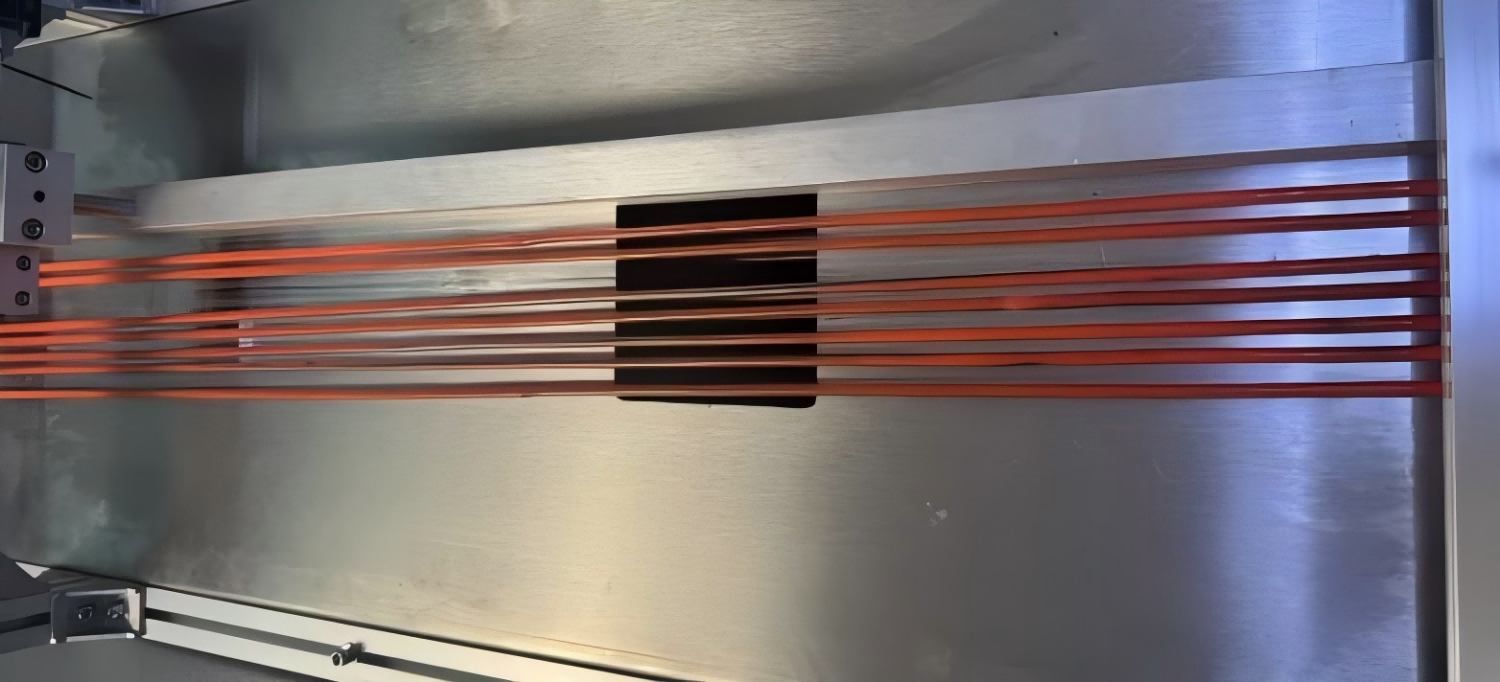

Uniform  Conveyance:  It  is  usually  equipped  with  a  conveyor  belt  or  other conveying devices that operate at a uniform speed. This enables the products to pass through the inkjet printer at a uniform speed, ensuring that the printer can carry out the printing under stable conditions, which helps to improve the quality and effect of the printing.

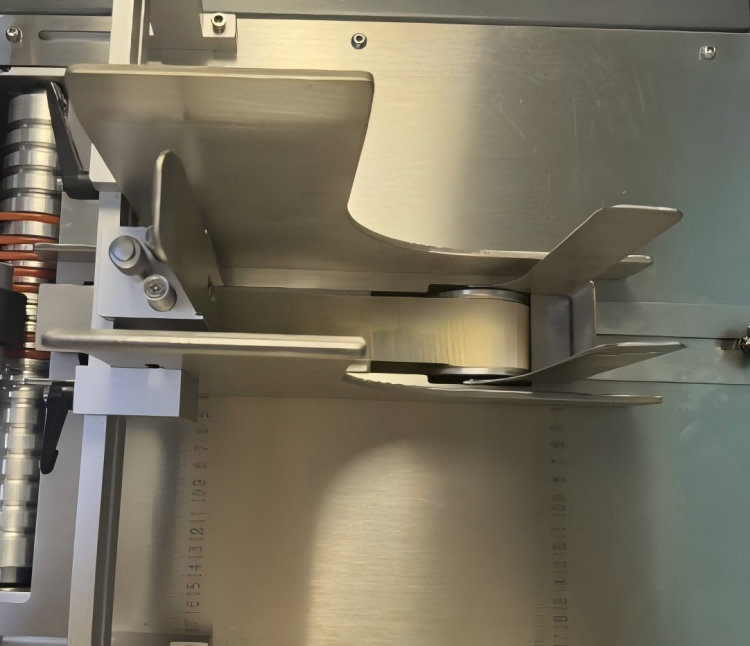

Precise positioning: The deviation correction device can monitor and adjust the position of materials on the paging platform in real time, ensuring that the materials maintain an accurate position and posture when entering the coding area. It keeps the distance and angle between the nozzle of the coding machine and the surface of the materials consistent all the time, thereby improving the precision and consistency of coding and guaranteeing that the coding information on  each   product  can   be   presented accurately. For  example,   in   scenarios  that require high-precision  coding   like  the  supervision  codes  on   drug   packaging  boxes,  the  deviation correction function can keep the coding position error within a very small range.

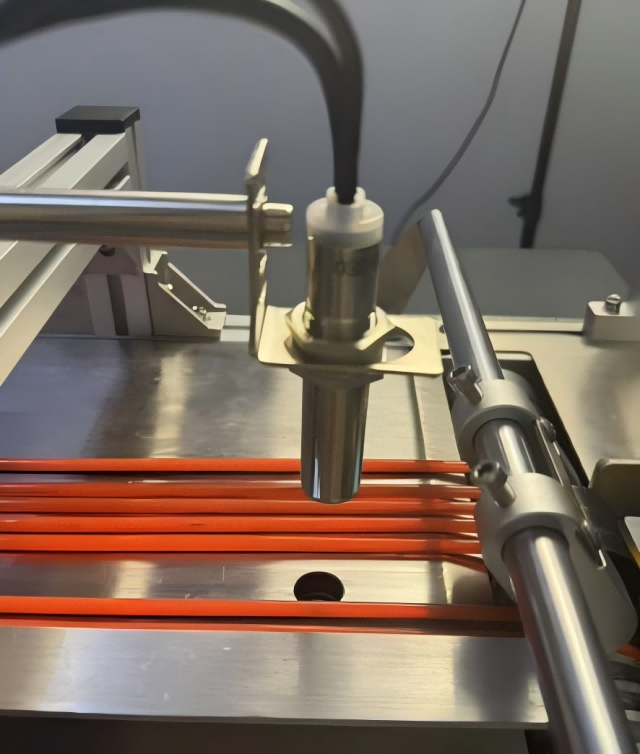

Prevent coding errors: During the coding process, if there is a situation of double sheets, it will lead to inaccurate coding positions or overlapping and chaotic coding information. The double-sheet detection system can accurately identify whether the sheets are overlapped and avoid coding on  the  double-sheet  materials. For example, in the coding operation of food packaging labels, accurate coding is crucial for product traceability and information communication. If  the labels are double-sheeted and not detected,  the coding may become chaotic, affecting the subsequent sales and quality control of the products.

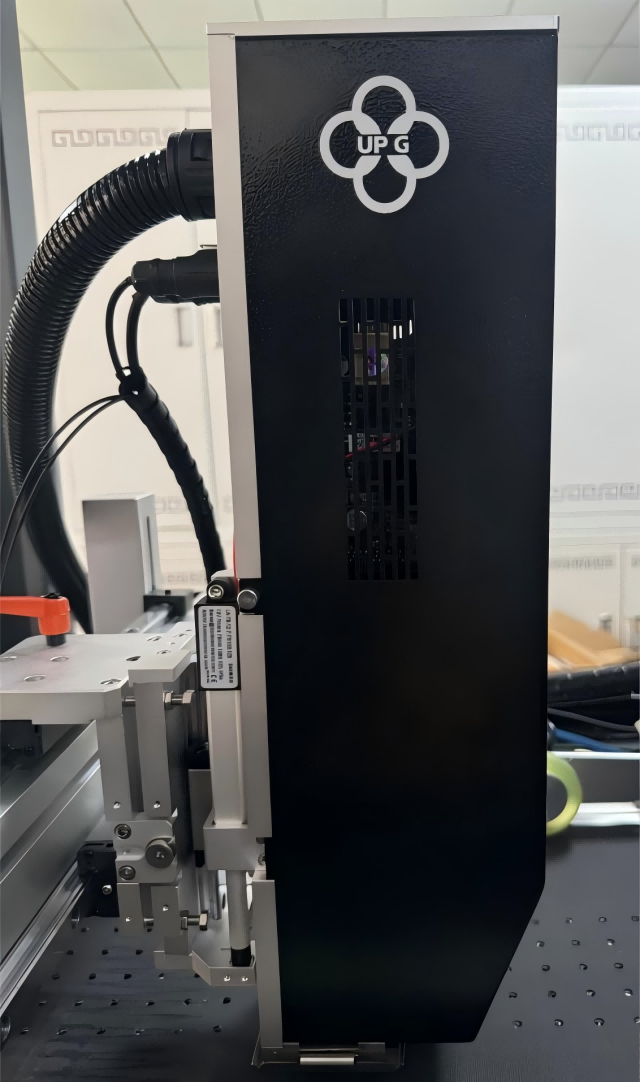

Variable Droplet Technology: It adopts grayscale piezoelectric nozzles and supports variable   droplet printing. The minimum droplet size is 7 picoliters and the maximum is 35 picoliters. It can achieve photo-level precision and is capable of clearly printing fonts as small as 2 points. The maximum resolution can reach 1200dpi×600 or 1200×1200 with 12 pass printing. It performs excellently in printing fine images and texts and can meet the requirements of scenarios with high demands for coding precision, such as the coding of electronic components, drug packaging and other products.

High Printing Times: The designed printing times for each nozzle can reach 100 billion times, which reflects its durability and reliability. Even under the condition of frequent use, it can maintain stable performance for a long time and reduce the problem of the decline in coding quality caused by nozzle aging.

Long Design Life: The Ricoh G5 printhead has a relatively long designed service life. If properly maintained, its industrial-grade nozzles can be used for 3 to 5 years. Compared with some other printheads, it greatly reduces the frequency and cost of replacing printheads, saves the costs of equipment maintenance and replacement for enterprises, and improves the overall economy of   production equipment.

High bonding strength: After UV-curing glue is cured, the polymer network structure formed has a relatively high bonding strength and can firmly bond various materials, including metals, plastics, glass and so on. It plays an important role in the bonding applications in fields such as electronics,  optics  and  machinery,  such  as  the  bonding  between  mobile  phone  screens  and frames, and the fixation of optical lenses.

Good wear resistance and chemical resistance: After being UV-cured, the coatings or inks have a more compact molecular structure and form a solid cross-linked network, which endows them with excellent wear resistance and chemical resistance. They can resist scratches, abrasions and the erosion of various chemical substances in daily life, thereby improving the service life and quality  stability   of  products.  For  example,   on  products  that   are  exposed  to  the  external environment for a long time, such as auto parts and outdoor billboards, the UV-cured coatings can maintain a good appearance and performance.

Ordered material collection: In the coding pipeline, the fish – scale material collecting line can collect the  products  that  have  undergone  coding  treatment  in  a  certain  order  and  spacing. Through its special structural design, it makes the products arranged like fish scales, avoiding confusion and  collision  during the  material  collection  process.  For  example,  for  some  small, regularly – shaped products such as medicine boxes and cosmetic boxes, the fish – scale material collecting  line  can  ensure  that  they  are  neatly  arranged  on  the  collecting   line,  facilitating subsequent packaging and handling.

Buffering and protection: The fish – scale material collecting line plays a buffering role. The products after coding are transported at a certain speed from the coding station, and the fish – scale material collecting line can slow down the transport speed of the products to prevent them from being squeezed or damaged due to excessive speed. This is particularly important for some fragile or easily – scratched products. For example, after glass products and plastic products are coded, they can safely enter the collection area through the buffering of the fish – scale material collecting line.

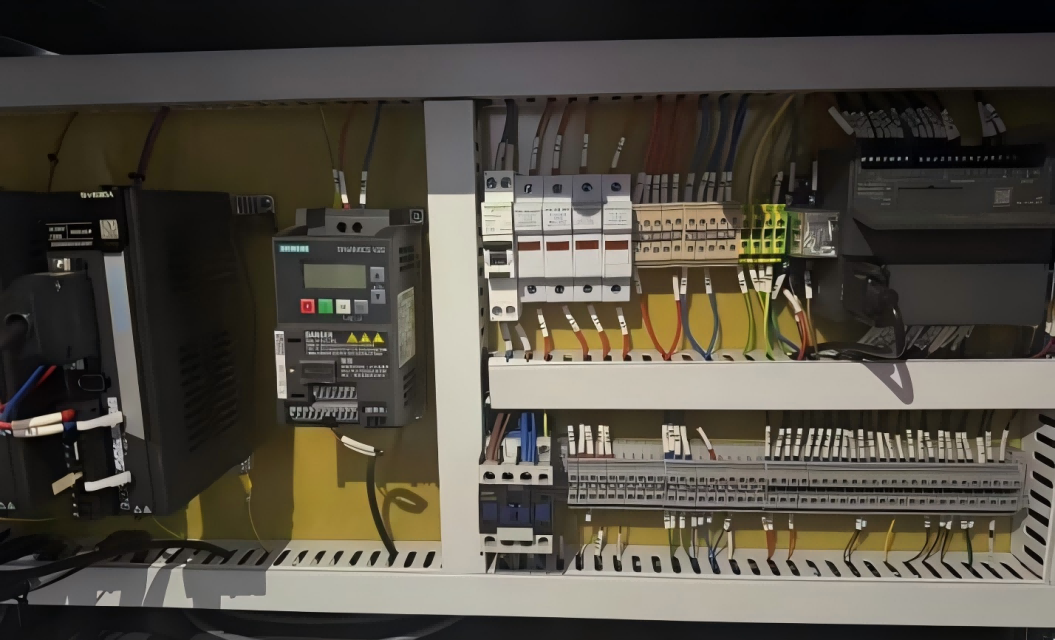

• Touch screen PLC digital communication control, no need manual adjust with feeder, transport and stacker, makes operation easy and convenient.
• l Delta servo motor, which ensures high-speed, shock-absorbing and stable operation.

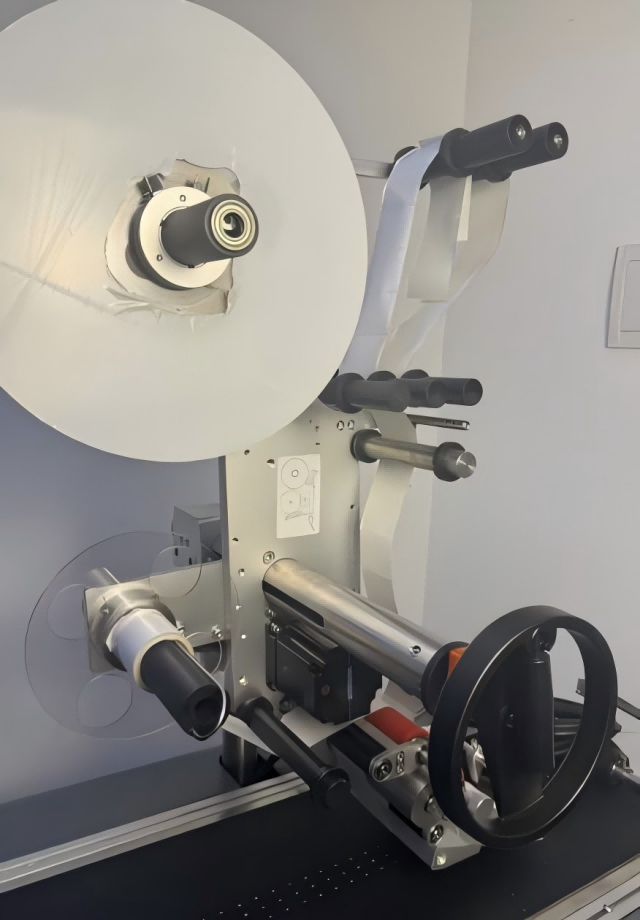

High Degree of Automation: The automatic labeling machine adopts advanced automation control systems and mechanical structures, and is capable of automatically completing a series of operations  such  as  picking  up,  placing  and  pasting  labels  without  the  need  for  manual intervention. It significantly reduces the labor intensity of workers, cuts down labor costs, and at the same time improves the automation level and production efficiency of the production process.

Adaptability to Diverse Products: By means of adjusting parameters and replacing some parts, it can meet the labeling requirements of products with different shapes, sizes and materials. Whether it’s products in round, square, cylindrical shapes or packages made of different materials like plastic, glass, metal, etc., the automatic labeling machine can complete the labeling tasks relatively well, thus increasing the applicability and flexibility of the coding and marking assembly line.
